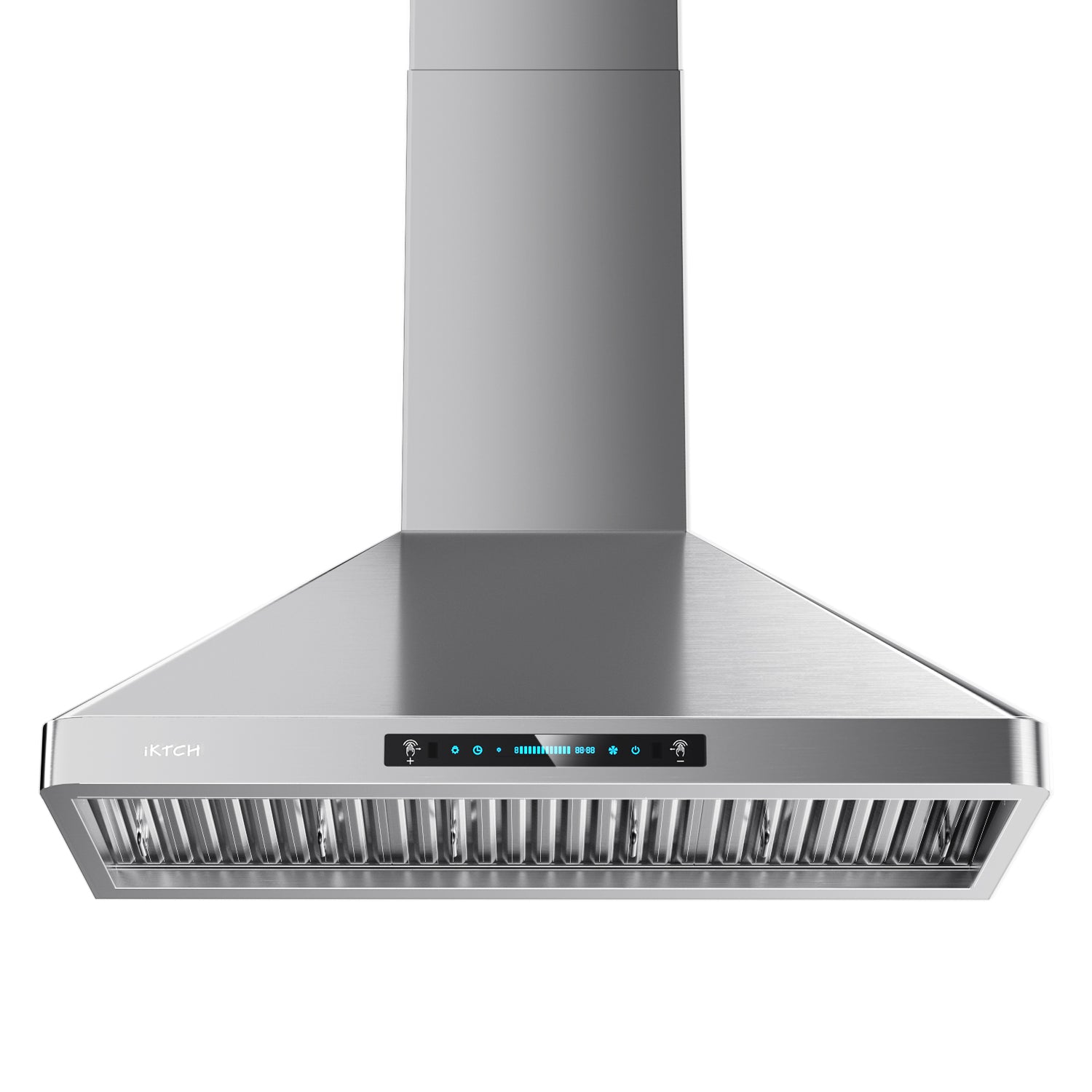

IKTCH IKP02R Wall Mount Range Hood

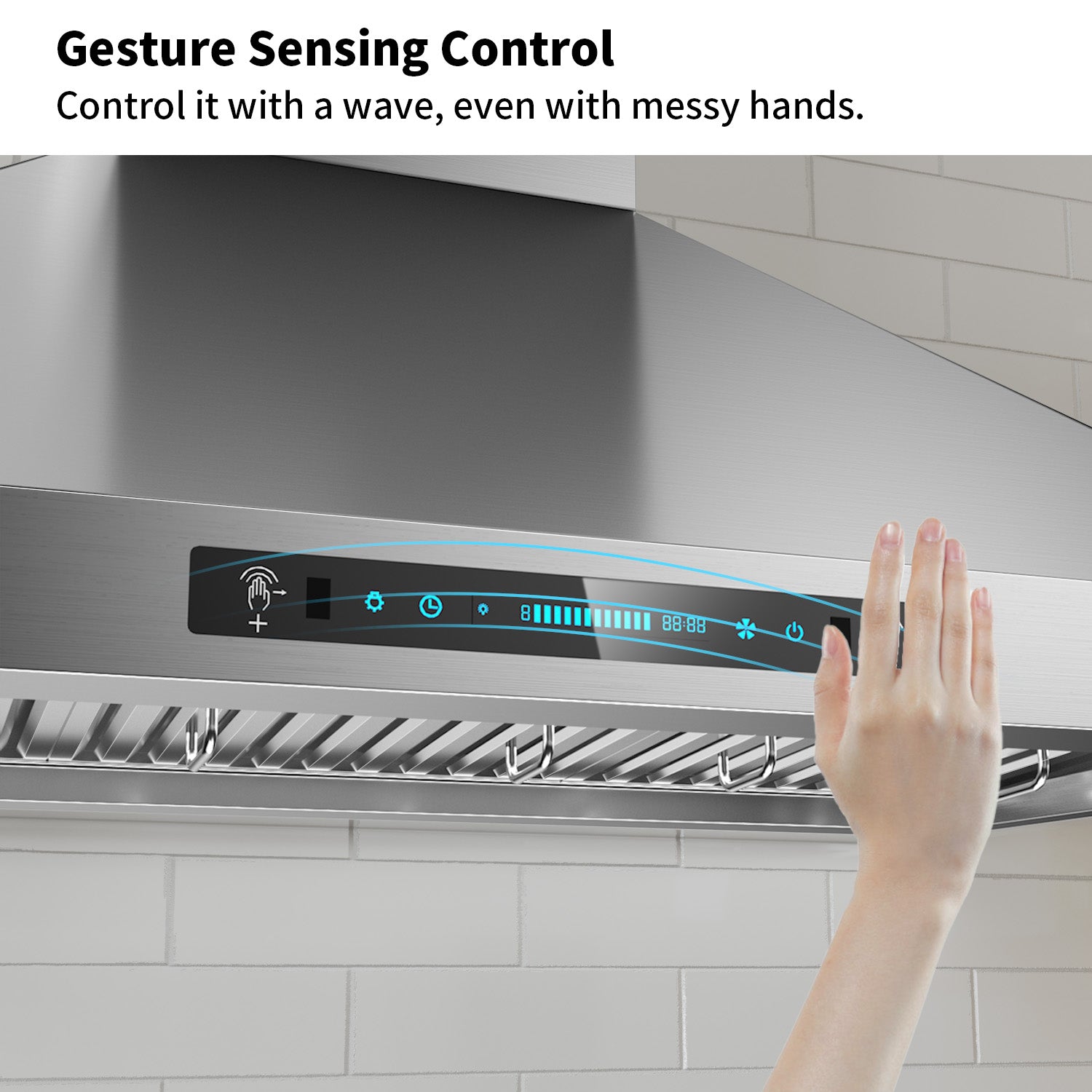

IKTCH Wall Mount Range Hood, 900 CFM Ducted/Ductless Range Hood with 4 Speed Fan, Pure Stainless Steel Range Hood  with Gesture Sensing & Touch Control Making life Smarter

• Click here for full installation instructions

The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to observe the instructions given here for installation^ maintenance and suitable use of the product. The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-ligence and the warranty of the unit automatically expires due to improper maintenance.

The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.

• Vent system must terminate to the outside (roof or side wall).
• DO NOT terminate the vent system in an at-tic or other enclosed area.
• DO NOT use 4" (10.2 cm) laundry-type wall caps.
• Use metal/aluminum vent only. Rigid metal/ aluminum vent is recommended.
• DO NOT use plastic vent.
• Always keep the duct clean to ensure proper airflow.
• Calculate the following figures before instal-lation:

1. Distance from the floor to the ceiling.
2. Distance between the floor to the coun-tertop/stove (recommend* 24” to 32").
3. Distance between the countertop/stove to the range hood.
4. Height of hood and duct cover.

For the most efficient & quiet operation:

• A distance of 24" to 32" is recommended* between stove top and the bottom of range hood.
• It is recommended that the range hood be vented vertically through the roof through 6" (15.2 cm) or bigger round metal/aluminum vent work.
• The size of the vent should be uniform.
• Use no more than three 90° elbows.

• Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than one elbow is used.
• DO NOT install two elbows together.
• The length of vent system and number of elbows should be kept to a minimum to pro-vide efficient performance.
• The vent system must have a damper. If roof or wall cap has a damper, DO NOT use damper (if supplied) on top of the range hood.
• Use silver tape or duct tape to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.

Due to different ceiling height configurations, rec-ommended height may not be applicable.

MPORTANT:

• A minimum of 6" round (standard for this range hood) must be used to maintain maximum airflow efficiency.
• Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct.
• Please use Duct Run Calculationbelow to compute the total available duct run when using elbows, transitions and caps.
• ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase duct size from 6” to 7"or 8". If a reducer is used, install a long reducer instead of a pancake reducer. Reducing duct size will restrict airflow and decrease airflow, thus reduce duct size as far away from opening as pos-sible.
• If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.
• Minimum mount height between stove top to hood bottom should be no less than 24-inch*.
• Maximum mount height between stove top to hood bottom should be no higher than 32-inch*.
• It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose its performance and efficiency.
• If available, also refer to stove top manufacturer^ height clearance requirements and recommended hood mounting height above range.

* Due to different ceiling height configurations, recommended height may not be applicable.

Minimum Duct Size:

• Round - 6" minimum

Calculating Vent System Length

To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system from the recommended maximum duct run.

Duct Run Calcuation example:

One roof cap, two 90° elbow, and one 45° elbow used: 9ft + 9ft + 9ft + 5ft = 32ft used.

Deduct 32ft from 50ft, 18ft maximum available

for straight duct run.

Venting Methods

• This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installations, see Ductless Conversionon Page 7.
• Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

IMPORTANT:

• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.
• Use caulking to seal exterior wall or roof opening around the cap.

Ductless Conversion

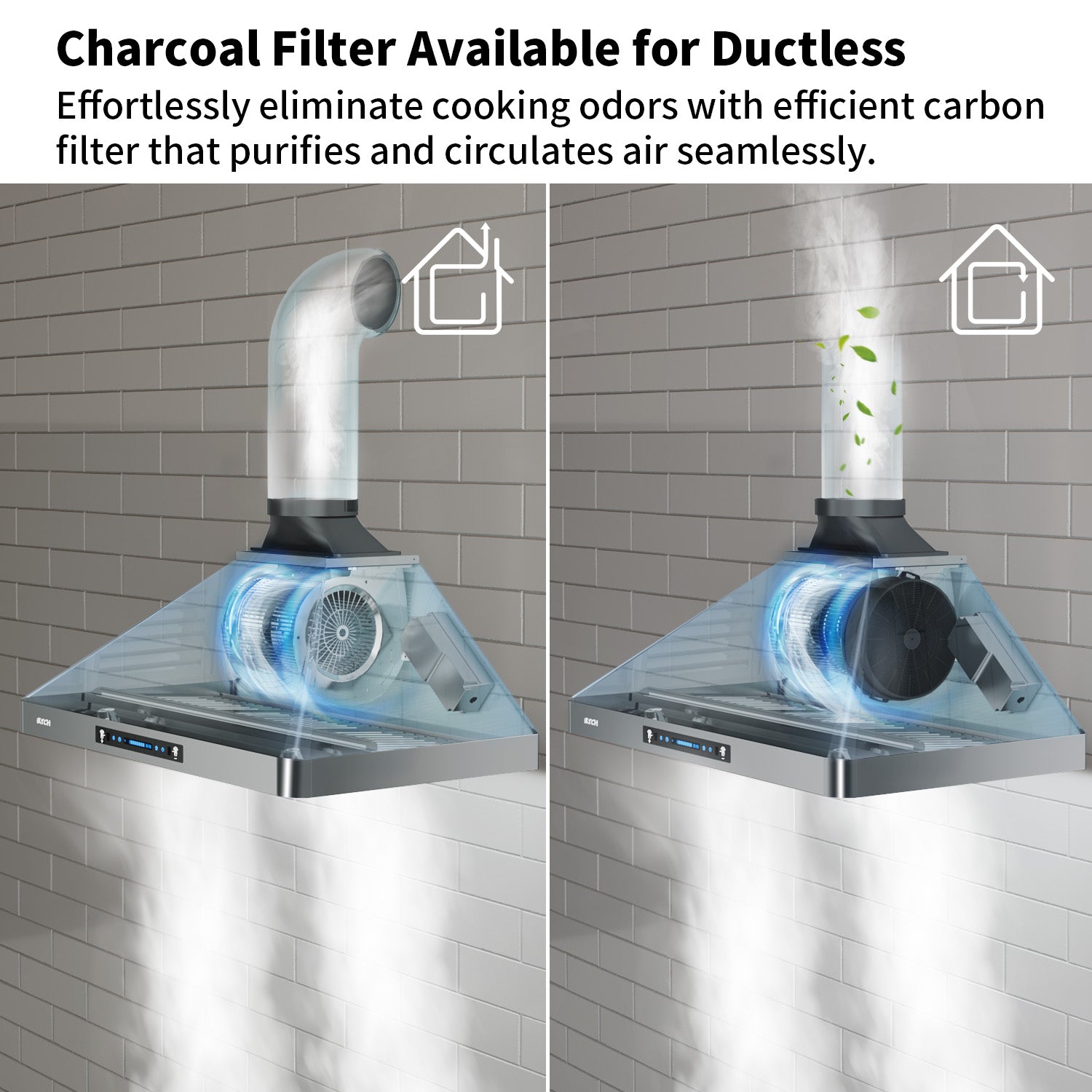

• Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust from cooking is drawn and filtered by a set of charcoal filters. The air is then purified and re-circulated back within the home.
• We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. Only when the exhaust option is not possible should you recourse to converting the hood into a purifying unit.
• When converted to be a "purifying" unit, a set of charcoal filters and an air-diverter are required in addition to its standard aluminum filter set. Available at your local resellers. The standard aluminum filters are intended to capture residue from cooking, the optional charcoal filters help to purify fumes exhausted from cooking, and the optional air-diverter redirects filtered clean air back to the house.

Electrical Requirements

MPORTANT: Observe all governing codes and ordinances.

(THIS HOOD REQUIRES 120V POWER TO OPERATE PROPERLY)

It is the customer's responsibility:

To contact a qualified electrical installer.

To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 一 latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No. 0- M91 - latest edition** and all local codes and ordinances.

• If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
• A 120-volt, 60 Hz, AC-only,
• Do not ground to a gas pipe.
• Do not have a fuse in the neutral or ground circuit.

, RISK OF ELECTRICAL SHOCK. This range hood must be properly grounded. Check with a qualified elec-trician if you are not sure whether the range hood is properly grounded.

• The range hood should be connected directly to the fiised disconnect (or circuit breaker) box through flexible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provided at each end of the power supply cable. Do not use extension cord or adapter plug with this appliance.
• The range hood must be connected with copper wire/plug only

• Always use plug provided. If not possible, connect three wires according to its color (black to hot, white to neutral, and green to ground) to house wires and cap with wire connectors:

Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specified on the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 一 latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit con-nector must be provided at each end of the power supply cable (at the range hood and at the junction box).

Copies of the standards listed may be obtained from:

* National Fire Protection Association ** CSA International Batterymarch Park 8501 East Pleasant Valley Road

Quincy, Massachusetts 02269 Cleveland, Ohio 44131-5575

Measurements and Diagrams

Installation Overview:

Installations

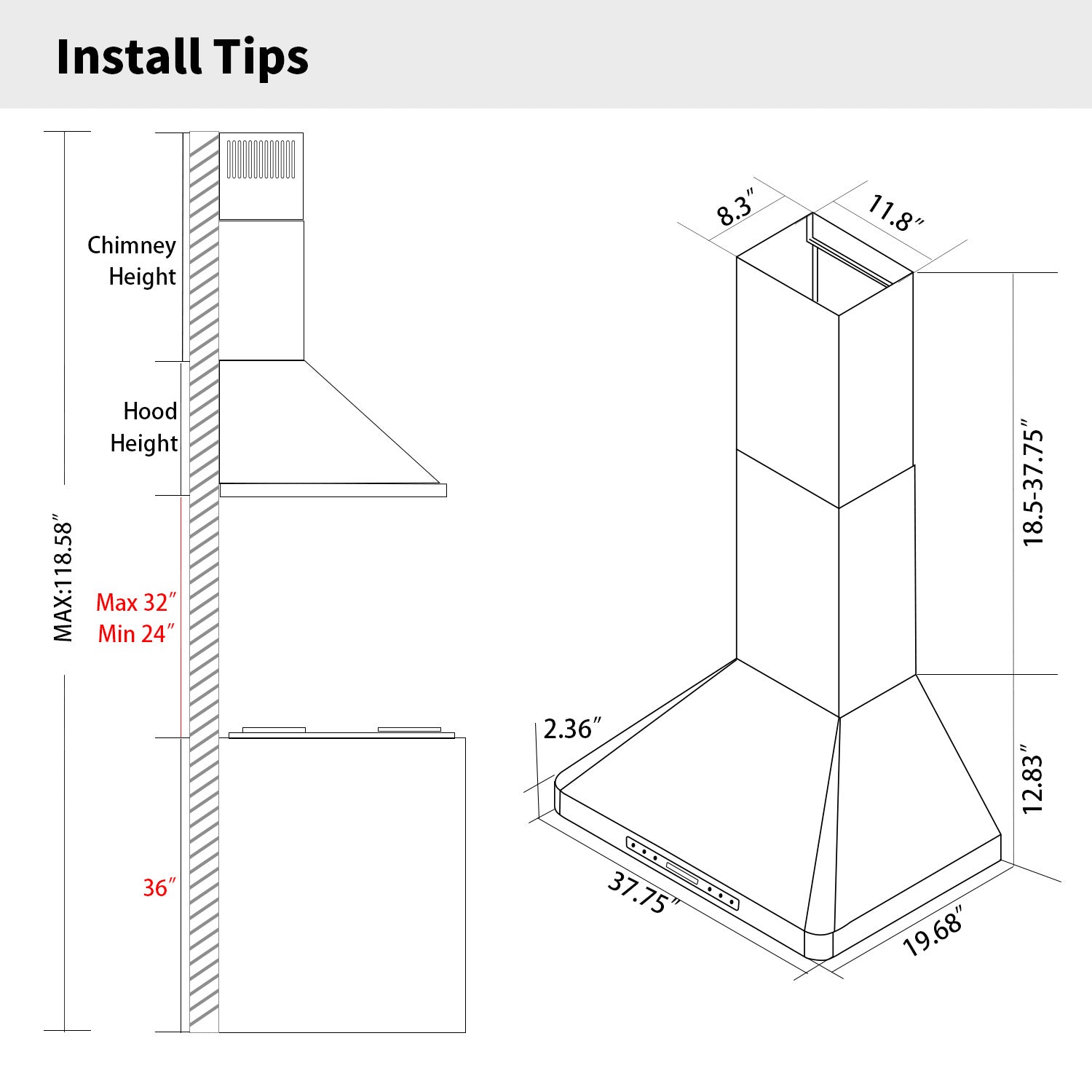

Measure the distance between stove top and the bottom of range hood. A distance of 24" to 32" is recommended*. *Due to different ceiling height configurations, recom-mended height may not be applicable.

1. Using references in Height & Clearanceon  and Measurements and Diagrams , mark the leveling point of the hood. Position two mounting screws on the wall, leaving 1/8" space away from the wall.
2. Measure the width of the chimney then attach the chim-ney- mounting brackets to the wall as high as you want the upper chimney to be.

NOTE: Use threaded drywall anchors only when mount-ing

the hood on sheet rock. Mounting the hood on wall studs or

lumbars is highly recommended.

3. Align hood-mounting holes to the screws on the wall and hook the hood into place. Tighten screws to secure hood to the wall. CAUTION: Make certain the range hood is secure before releasing!

4. Connect the venting duct between the hood and the exhaust opening either on the ceiling or wall. Use alumi-num tape to make all joints secure and air tight

5.  Connect the range hood to a designated standard outlet (please refer the product label for the suitable voltage of

   this unit) or cut off the plug and connect three wires (black, white and green) to house wires and cap with wire

   connectors. Connect according to colors (i.e. black to black, white to white, and green to green).



SAFETY WARNING: Risk of electrical shock. This range hood must be properly grounded. Make sure

this is done by qualified electrician in accordance with all applicable national and local electrical codes.

Before connecting wires, switch power off at service panel and lock service panel to prevent power from

being switched on accidentally.

6. Store excess wires in the wiring box.

7. Install both chimneys and tighten screws to secure the lower chimney to the range hood as shown in Figure 5.

8. To avoid scratching the chimney, extend the upper chimney slowly and carefully to the chimney-mounting bracket and tighten screws as shown in Figure 6.

9. Place grease tunnel into recess support near rear of hood. Refer to Figure 7.

10. To install stainless steel baffle filters, refer to Figure 8 for the following five steps:

1. Angle baffle filter toward back of hood.
2. Push baffle filter up until almost level.
3. Slide forward into recess behind the front of hood.
4. Lower baffle filter.
5. Slide back until it fits into resting positions.

11. Repeat Step 12 to install all stainless steel baffle filters.

12. Turn power ON in control panel. Check all lights and fan operations.

13. Make sure to leave this Installation Guide for the homeowner.

One Year Parts Warranty:

• For one year from the date of original purchase, we will provide free of charge, non-consumable replacement parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below, we will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
• Repaired parts or replacement products will be provided by us on an exchange basis, and will be either new or refurbished to be functionally equivalent to new.
• The consumer is responsible for all shipping costs.
• Consumable parts not covered by this warranty include but not limited to: light bulbs, stainless steel baffle filters.

Who is Covered?

• This warranty is extended to the original purchaser for products purchased for ordinary home use in the continental USA.

This Warranty Will Be Voided When:

• Product damaged through negligence, improper installation, accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions, or any unauthorized disassembly, repair, modification, or failure to follow installation instructions.
• When product is used commercially or other than its intended purpose.
• Damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than our authorized agents.
• This limited warranty also does not apply to any product on which the original identification information has been altered, obliterated or removed, has not been handled or packaged correctly, has been sold as second-hand.

What is Not Covered?

• Consumable parts such as light bulbs, stainless steel baffle filters. The natural wear of finish, and wear due to improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products.
• Chips, dents or cracks due to abuse, misuse, freight damage, or improper installation.
• Damage of product caused by accident, fire, floods or act of God. It is not liable for, and does not cover under warranty, any loss of properties or any costs associated with removing, servicing, installing, or determining the source of problems with our products.

This warranty is valid in the United States. It is non-transferable and applies only to the original purchaser and does not extend to subsequent owners of this product. Any applicable implied warranties, including the warranty of merchantability, are limited in duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and, no warranties, whether express or implied, shall apply to this product thereafter.

To obtain warranty service, you may contact us, its dealer or distributor from which you purchased the product. Please confirm the terms of your dealer's or distributor's policies prior to contacting. Typically, you must include product identification information, including model number and lot number with a detailed description of the problem you are experiencing. You must also include proof of the date of original retail purchase as evidence that the product is within the applicable warranty period.
