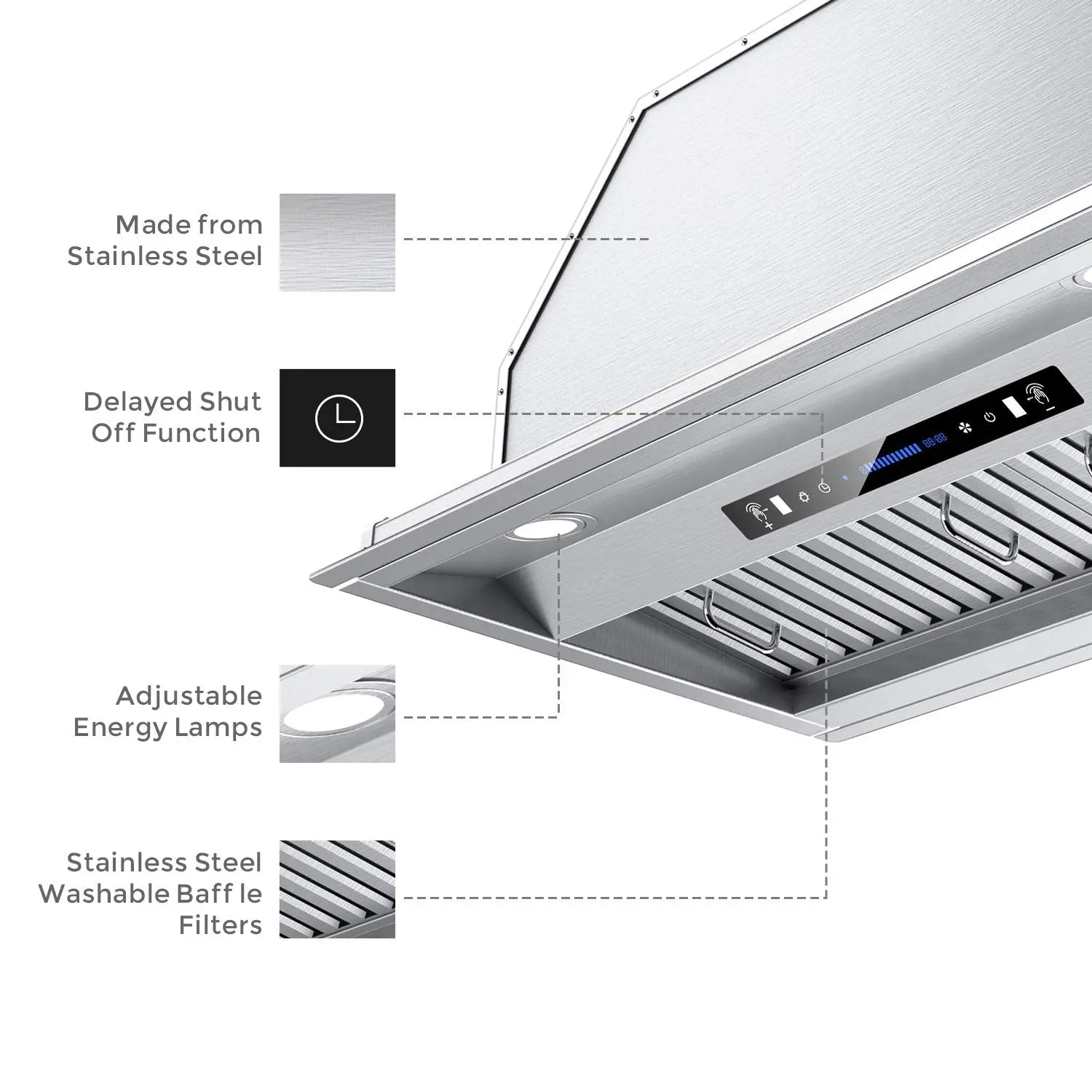

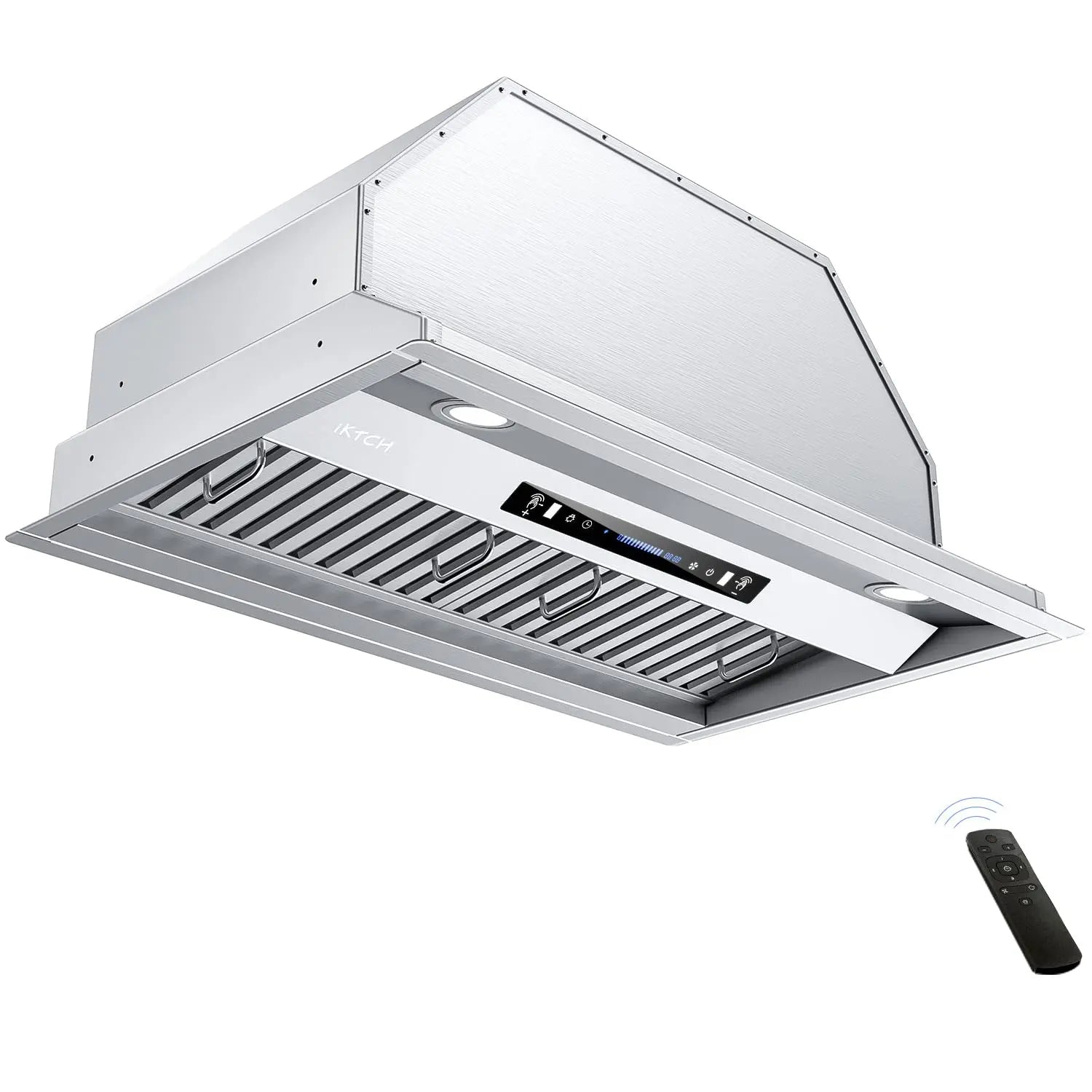

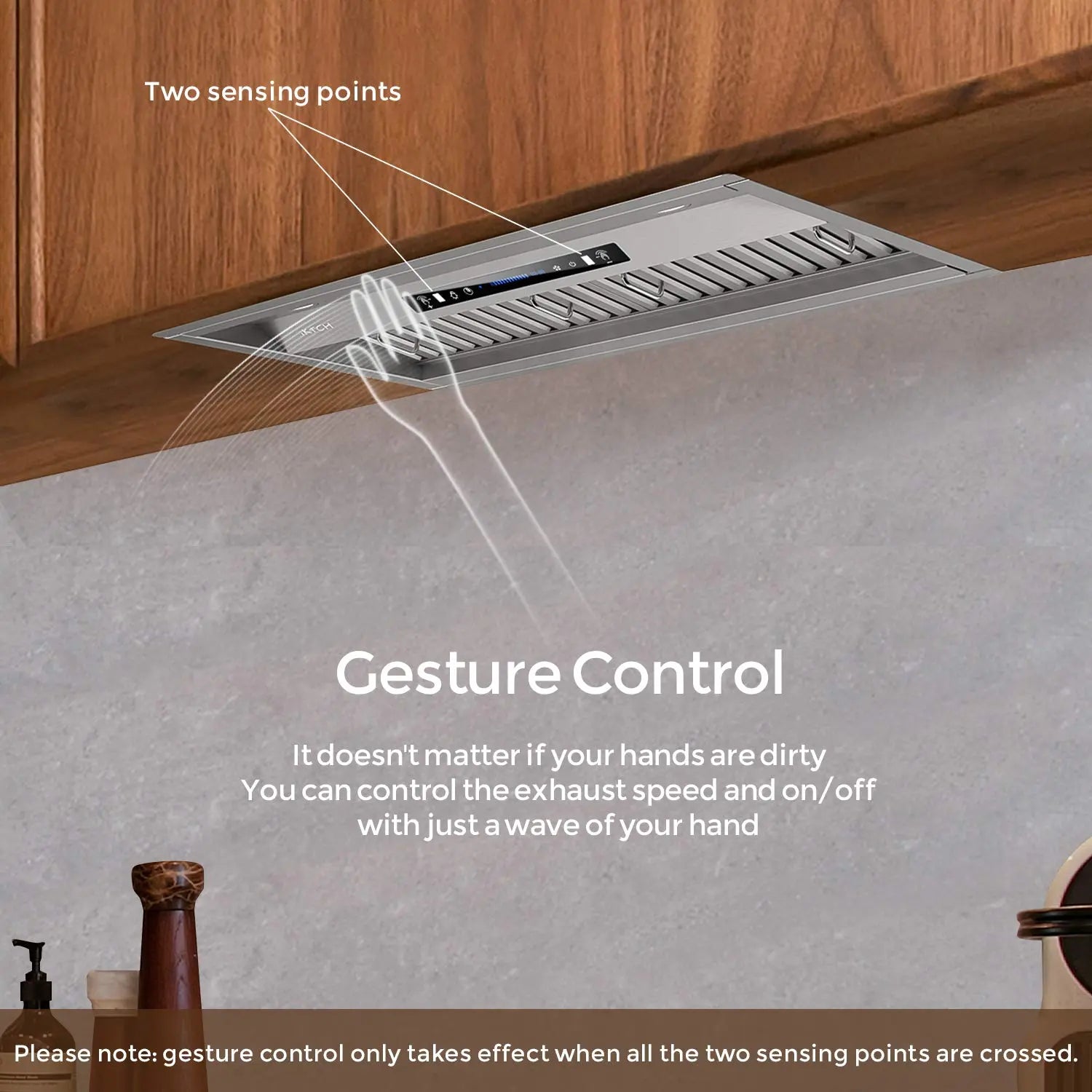

IKTCH IKB02 Built-in/Insert Range Hood Silver 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood
IKTCH IKB02 Built-in/Insert Range Hood 30 36 42 Insert Range Hood

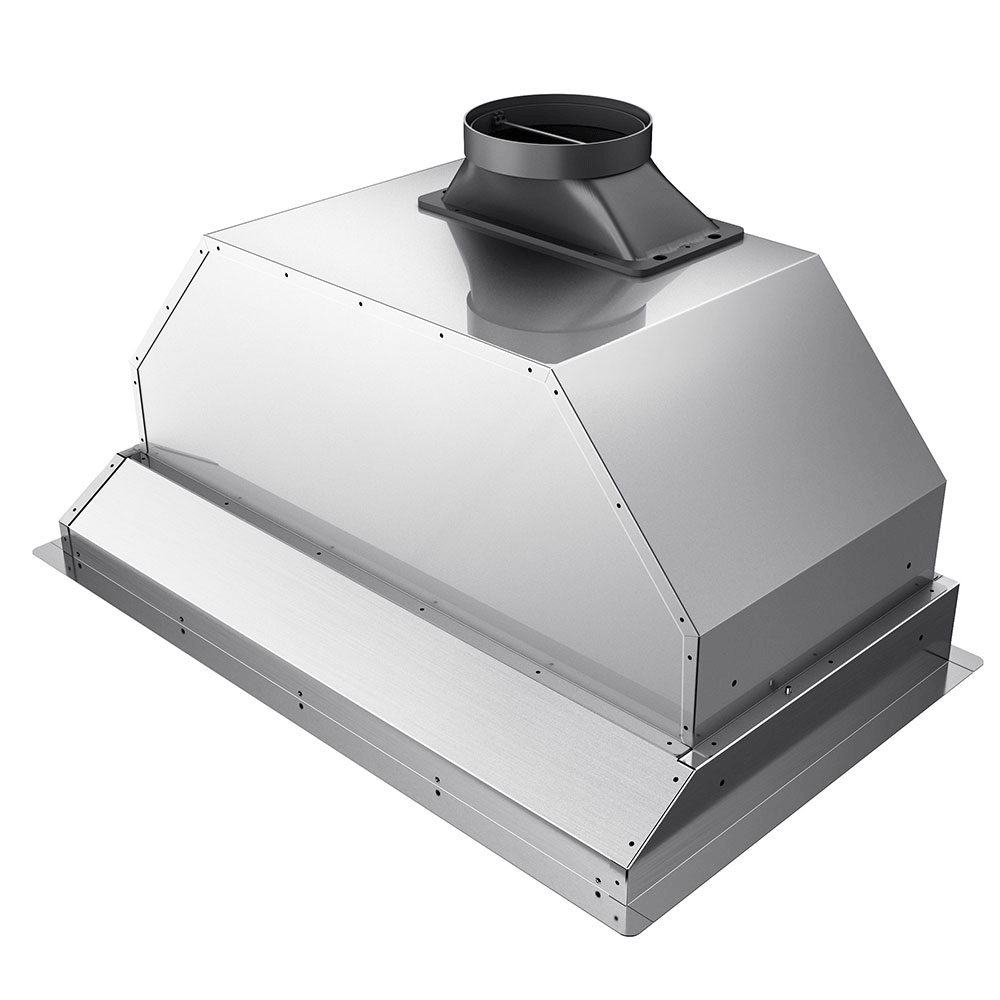

IKTCH IKB02 Built-in/Insert Range Hood

Regular price $439.00 USD
Sale price $439.00 USD Regular price $644.06 USD
Silver
20 people are viewing this right now
Basic information
Vendor

IKTCH

Color

Silver

Size

30 inc

Other Information
Installation Type

Insert Range Hood

Speed Setting

900 CFM

Material Type

1mm (19-gauge) stainless steel

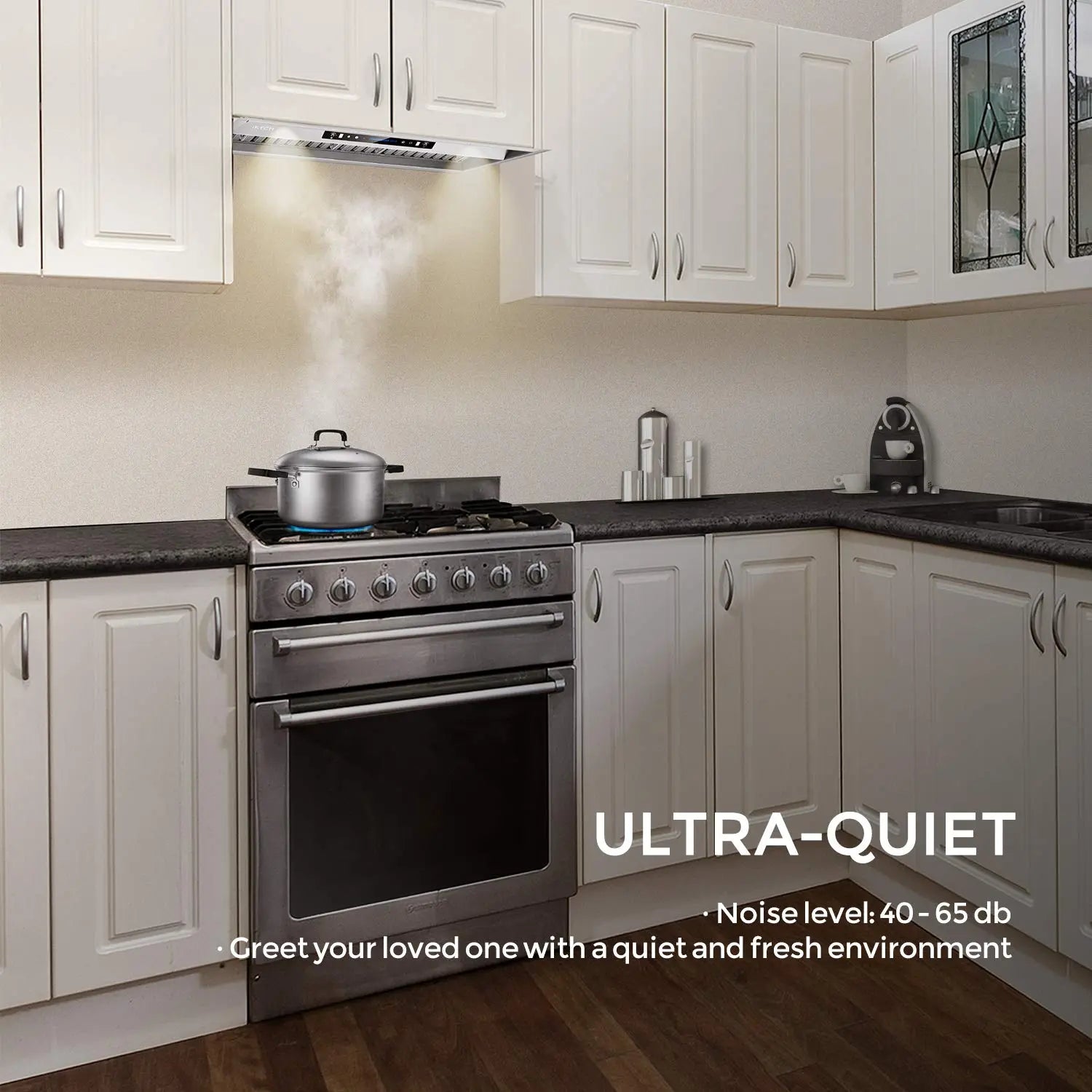

Noise level

40-65db

Activated Carbon

Filter panels

2pcs (with handle)

LED lights

2 x 3W

Ventilation Duct

6" round exhaust duct vent

Chimneys

None

Installation tutorial

Click here for full installation instructions

IKB02 SERIES INSTALLATION

Custom HoodPreparation:

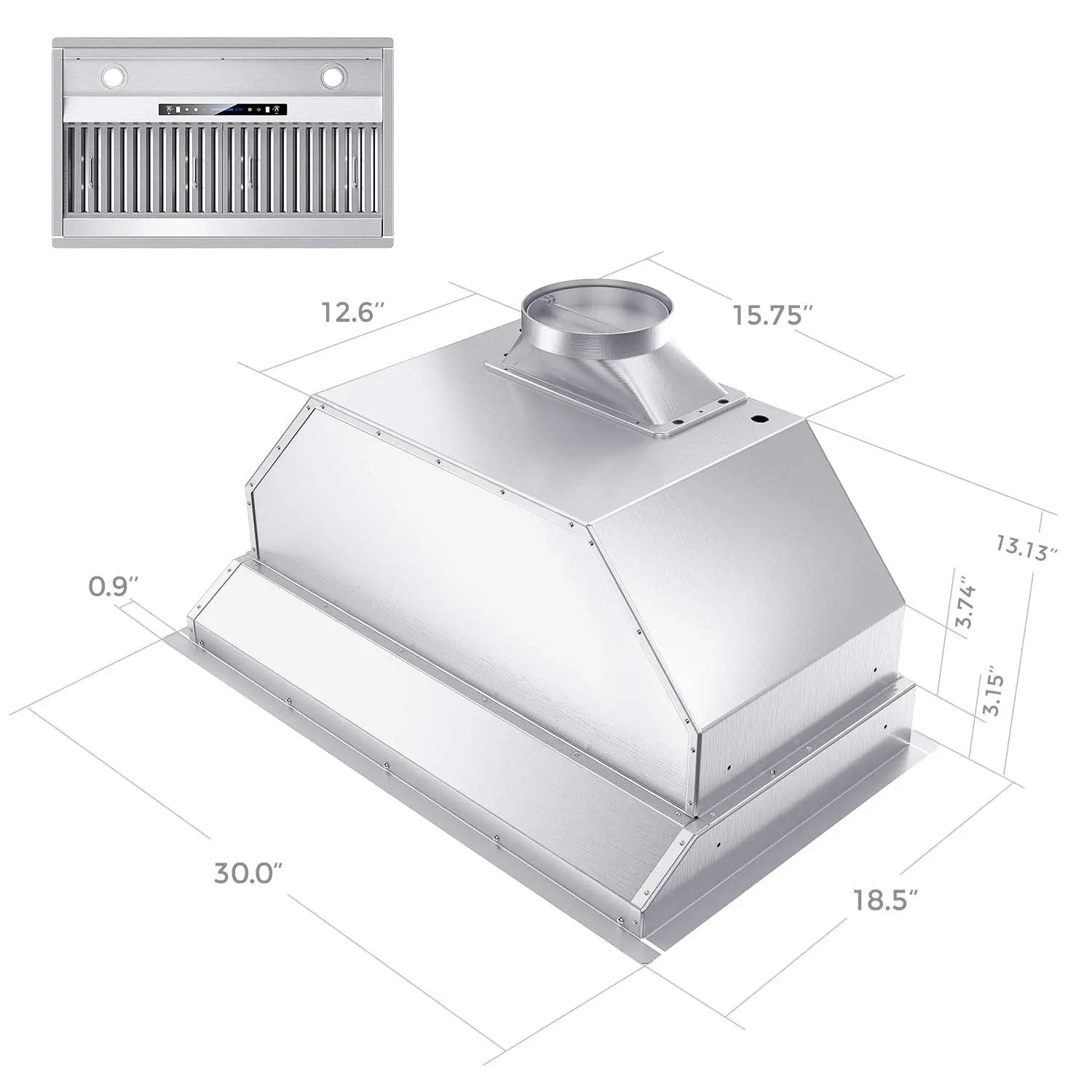

1.The custom hood frame must be designed according to the shape and the weight of the insert.Refer to Measurements and Diagrams

2.A sturdy base (3/4 inch thick plywood recommended) is needed to sustain the weight ofinsert.

3.Please install the insert hood left & right stud support (not included)

4.Determine and mark the centerlines on the base of the wood frame where the insert will be installed.

5.Determine the proper location for the Power Supply Cable. Make a wiring access hole using a drill bit. Install the wire cable and seal the gap around hole.

6.Cut out the opening where the insert will be installed.(Figure 1)

Hood Installation

NOTE: USE HAND TOOLS ONLY DO NOT OVER TIGHTEN SCREWS. IT MIGHT CAUSED DAMAGED TO THE HOOD

1.Remove 5 screws located at the bottom of the insert (Refer to Figure 2 and figture 3).

2. Disconnect the 2pcs LED lights wire and switch wire, then carefully remove the light support panel from hood body refer to figture 4

3. Position the insert inside the custom wood frame, refer to figture 5, Secure the insert to the left and right stud support ( Refer to Figure 5) by using the left and right mounting holes (Screws included, 2 holes each side ).

4. Make sure insert is secure before releasing

5. Re-install the light support panel. (Do not over tighten screws.) Refer to figture 6

FinalAssembly

1. lnstall the oil tunnel into recess support near rear of hood, and assemble the handle to stainless steel baffle filters Refer to Figure 7.

2.Install baffle filters. Angle baffle filter toward back of hood 1 . Push baffle filter up until almostlevel 2. Slide forward into recess behind the front of hood 3. Lower baffle filter 4. Slide back until it fits into resting position 5. Refer to Figure 7

1️⃣Angle baffle filter toward back of hood

2️⃣Push baffle filter up until almost level.

3️⃣Slide forward into recess behind the front of hood

4️⃣Lower baffle filter.

5️⃣Slide back untilit fits into resting positions.

Maintenance instructions

MAINTENANCE

For optimal performance, clean the range hood surface and baffles regularly.

To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS,PADS,OR CLOTHS
*** Regular care will help preserve its fine appearance.

1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.

2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to dry the hood.

3. DO NOT allow deposits to accumulate or remain on the hood.

4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.

5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.

For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel

CAUTION: DRAIN OIL FROM BAFFLE FILTERSSPACERS & OIL TUNNEL REGULARLY TO PREVENT OVERFLOW.
1.Remove all the baffle filters, spacers and oil tunnel. Note: Not all models have spacers and oiltunnels.

2.Using a sponge, wash with warm soapy water. Dry completely before returning into place.CAUTION: SHARP EDGES (Note: Baffle Filters are top rack dishwasher safe.)

Troubleshooting
Issue Possible Cause Solution
After Installation,both motors and lights are not working The power is not on. Make sure the circuit breaker and the unit's power is ON. Use a voltage meter to check the power supply.
The wire connection is not secure Check and tighten wire connection.
The control switch is defective. Replace the control switch.
Lights are working,but motor(s) is not. The blower system is not secure. Tighten the turbine impeller/squirrel cageand air chamber.
The turbine impeller/squirrel cage is not balanced. Replace the turbine impeller/squirrelcage.
Hood is not secured in place. Check the installation of hood,tighten the mounting bracket.
The motor is working, but the lights are not working. LED light fixture(s) is defective. Replace LED light fixture(s)
The light wiring(s) is loose. Check wire continuity from ControlSwitch to LED Driver to LED lightfixture(s).
The control switch or LED lightdriver is defective. Replace the control switch or LED lightdriver.
The rangehood is notventing outcorrectly. The range hood is installed outside of the manufacture recommended clearance. Adjust the clearance between the range hoods and cook top to 26" to 30". For Island range hood, the clearance between the range hoods and cook top is 30"to 36”
There is no make-up air inside thehouse. Open the window to enhance the performance of the range hood by creating a sufficient make-up air.
Obstacle blocking the pipe work. Remove all obstacles from the ductwork.
The pipe size is smaller than the suggested pipe size. Change the ducting according to the manufacture suggestion.
Cold air is coming into the home. The pipe connection is not properly sealed Check the pipe installation.
The damper is not properly installed or is  missing from the installation. Check the damper installation.
The damper is not installed. Installing the damper will help eliminateair backflow.
Warranty Description

SPARE PARTSWARRANTY

5 Years warranty for LED lights and switch conntrol

10 Years warranty for motor and blowers

lf any problem, please kind send mail to us with your amazon order lD, We would like to send you spare parts immediately with free of cost Email: shopify@iktch.com
